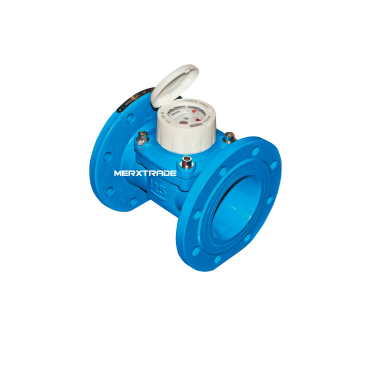

Watermeter Woltmann High Flow B.METERS cold water
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
DIN
| Model: | Woltmann MID R100 COLD water | Material body: | Cast iron |
| Connection: | Flanged PN10/16 | Positions: | Horizontal & Vertical* check data |
| Pressure: | 16 bars | Normally: | Horizontal position |
| Temperature: | 0°C to + 50°C | Note: | Avoid water hammering |
| Design: | EN 14154:2005+A2:2011 | Brand: | B.METERS |
| Standards: | A.C.S. N° 19 ACC LY 428 | Made: | Europe Italy |
| Horizontal or vertical position without straight length upstream and downstream needed (U0/D0) |
| 360° rotating dry dial |
| Magnetic transmission |
| Direct reading on 7 numerical rolls with lid protection |
| Epoxy resin blue painting RAL 5015, 80-100 μm thickness |
| Pre equipped radio MBUS, MBUS or pulse transmitter |
| Use: Water distribution |
Datasheet (PDF)
| SKU | MXT-WM17380000 |
|---|
